If you have spent any time around commercial espresso machines, the E61 espresso machine needs no introduction. The original Faema E61, introduced in Italy in 1961, helped define what a professional lever group should feel like. That heavy E61 group head, the satisfying pull of the lever, the solid chrome-plated brass body, and the way the whole machine slowly warms up until it feels alive make it more than just a coffee machine. For many users, it is a combination of ritual, engineering, and espresso tradition.
Most people know the E61 brew group as a passive system. Heat moves through a continuous thermosyphon loop, water circulates between the boiler and the group head, and the brass mass helps maintain temperature. It works, and it has absolutely earned its place as an industry standard in the espresso world. But it also asks for patience: many traditional E61 machines often require 20 to 40 minutes to heat up for optimal performance, along with cooling flushes, small pressure and temperature adjustments, and a bit of guesswork before achieving a consistent shot.
Our machines keep everything people love about the E61: the lever, the passive mechanical pre infusion, the robust mechanical feel, and the familiar serviceability of the E61 group. The E61 design also supports a wide ecosystem of accessories, including portafilters, baskets, gaskets, screens, flow control devices, and replacement parts. But we have changed how the heat actually reaches the group.
Why the E61 Group Head Became a Classic?
The E61 group head has remained popular for decades because it combines durability, extraction control, and serviceability in one proven design. Its heavy-duty brass structure helps store heat, while the mechanical pre infusion function allows water to contact the ground coffee before full pressure extraction. This can help create a smoother and more controlled espresso shot.
For commercial espresso machines, the E61 group is also valued because it is robust and easy to service. Many E61 machines are built for daily commercial use, and with proper maintenance, commercial espresso machines can often last 10 to 20 years. In higher-volume settings, E61 machines may also support dual-group configurations, giving cafés and coffee shops more capacity during busy service periods.
Some modern E61 espresso machines also support additional features such as volumetric dosing, rotary pump systems, cup warmer areas, pressure control, steam wand performance, and flow control devices that allow the user to adjust water flow during extraction. These features help improve consistency, workflow, and cup quality in both home and café environments.
Without a Thermosiphon, It Still Delivers Thermal Stability
Instead of relying on a thermosiphon, the KY-Mini A8 E61 group head with heated block has its own integrated heating element to help maintain thermal stability and temperature stability. The group head is no longer just a heavy piece of hot metal waiting for the boiler to transfer heat. It is actively controlled at the point where extraction happens.
On this basis, we use a T3 system. Think of it as three layers of thermal management working together: the boiler, the E61 group, and the electronic control system constantly monitoring and balancing temperature. The result is a level of consistency that traditional E61 espresso machines often require more user intervention to achieve.
For example, when a home barista pulls only a few shots in the morning, the heated group helps the machine perform without waiting for the entire setup to become fully heat-soaked. In a café environment, where customers expect constant quality and fast service, this technology helps deliver more repeatable espresso extraction during busy hours.

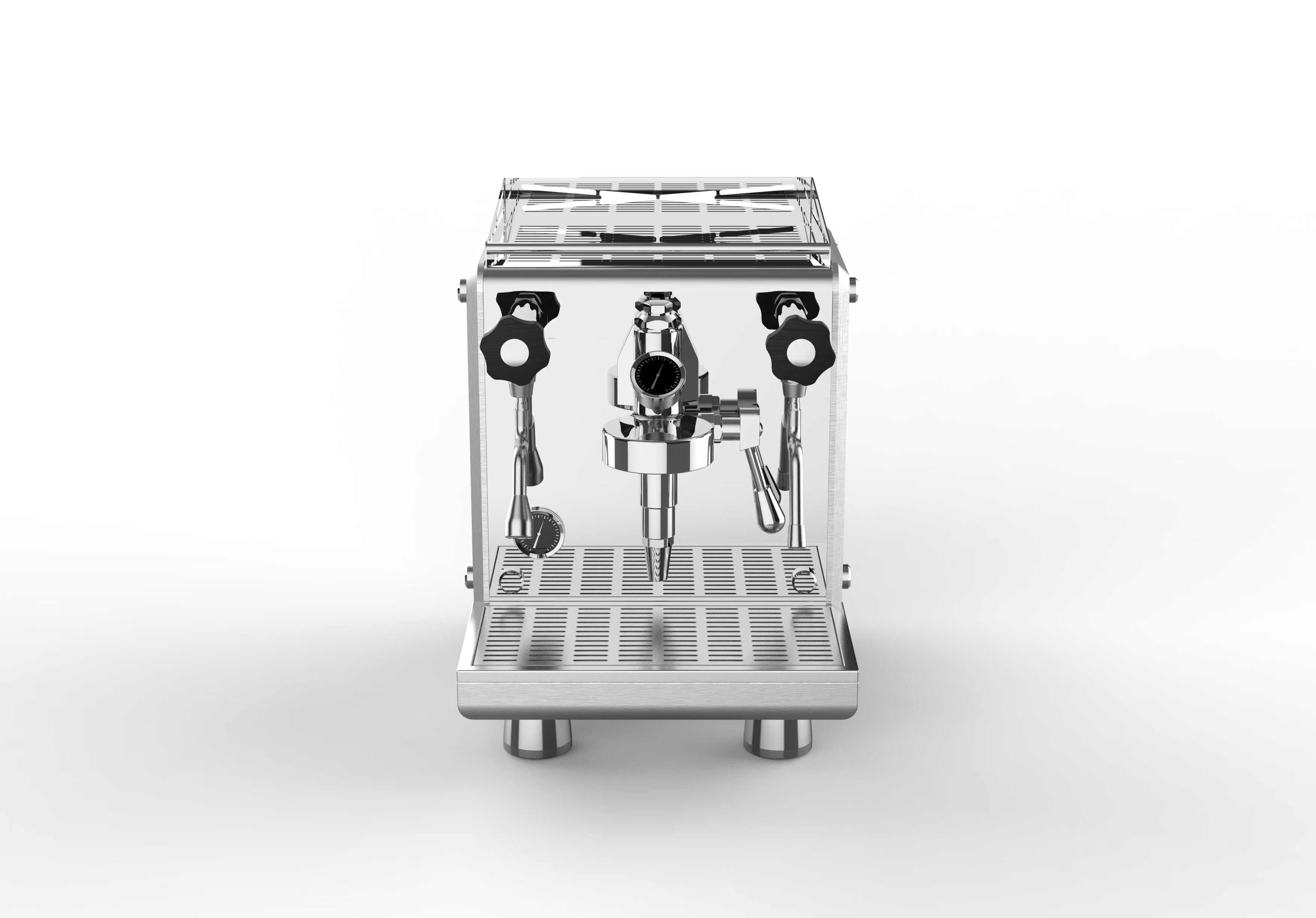

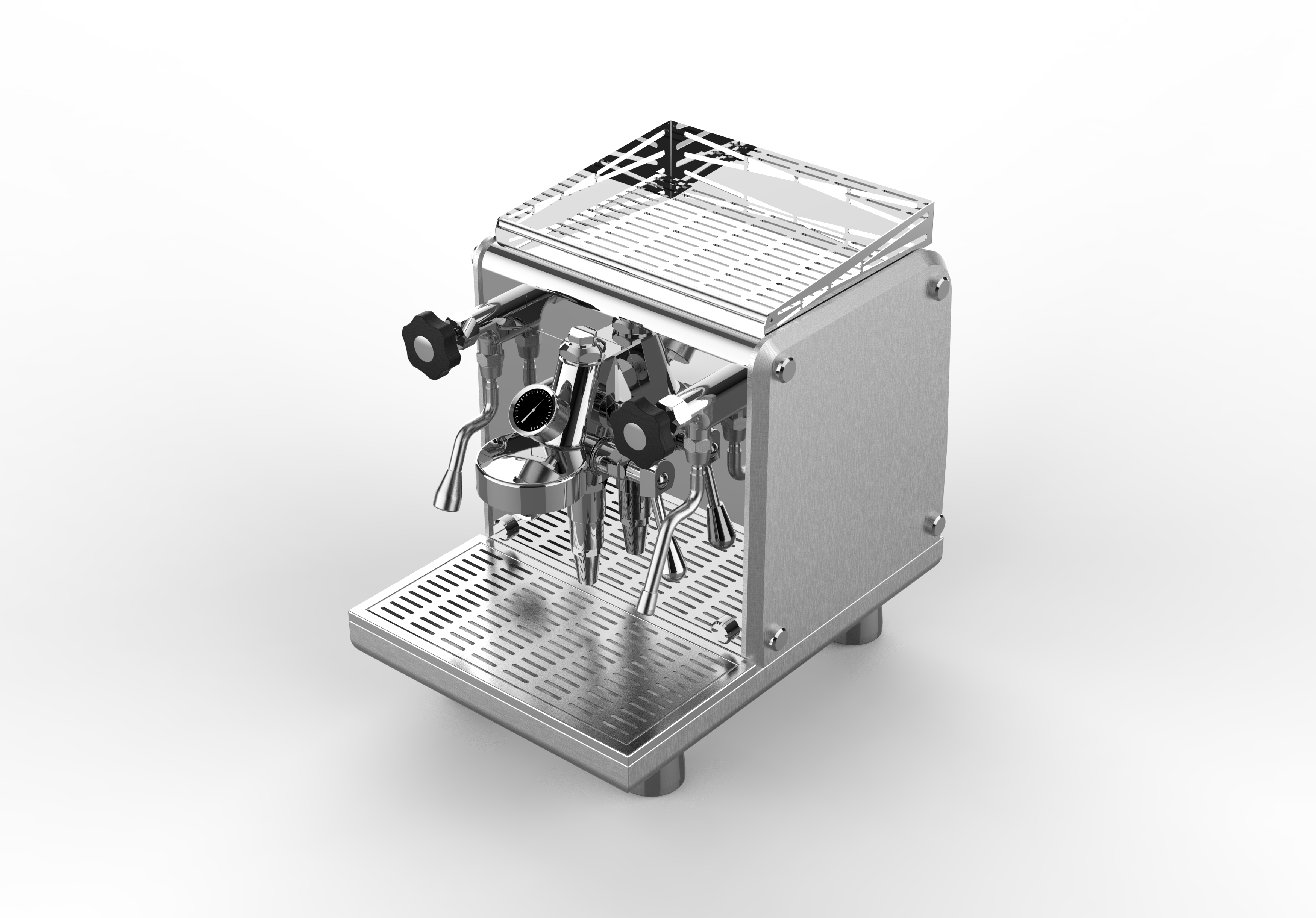

The KY-Mini A8 is designed as an E61 dual boiler coffee machine with commercial-oriented features. Depending on configuration, it can support a rotary pump, steam wand, cup warmer, pressure control, and volumetric dosing functionality. This makes it ideal for home use, small shops, office coffee corners, boutique cafés, and customers who prefer a compact machine with professional control.
KY-Mini A8 VS Traditional Coffee Machine
Here’s a quick side-by-side:
| Aspect | Traditional E61 | KY-Mini A8 Modern Heating Approach |
|---|---|---|
| Heat delivery | Thermosiphon loop | E61 group head with heated block |
| Temperature behavior | May drift and require flushing | Stable, repeatable shots |
| Boiler setup | Commonly, a heat exchanger or boiler-based heating | Dual boiler E61 espresso machine |
| Warm-up | Often 20 to 40 minutes | Faster group-first readiness |
| User experience | Hands-on and sometimes finicky | Still hands-on, but far less finicky |
| Pressure and extraction | Depends heavily on user control | More consistent temperature and pressure control |
| Dosing control | Manual or model-dependent volumetric dosing | Optional volumetric dosing depending on setup |
| Maintenance | Proven design with available replacement parts | Familiar E61 serviceability with modern heating technology |
| Best use case | Traditional home or shop setup | Home barista, café environment, and professional coffee service |

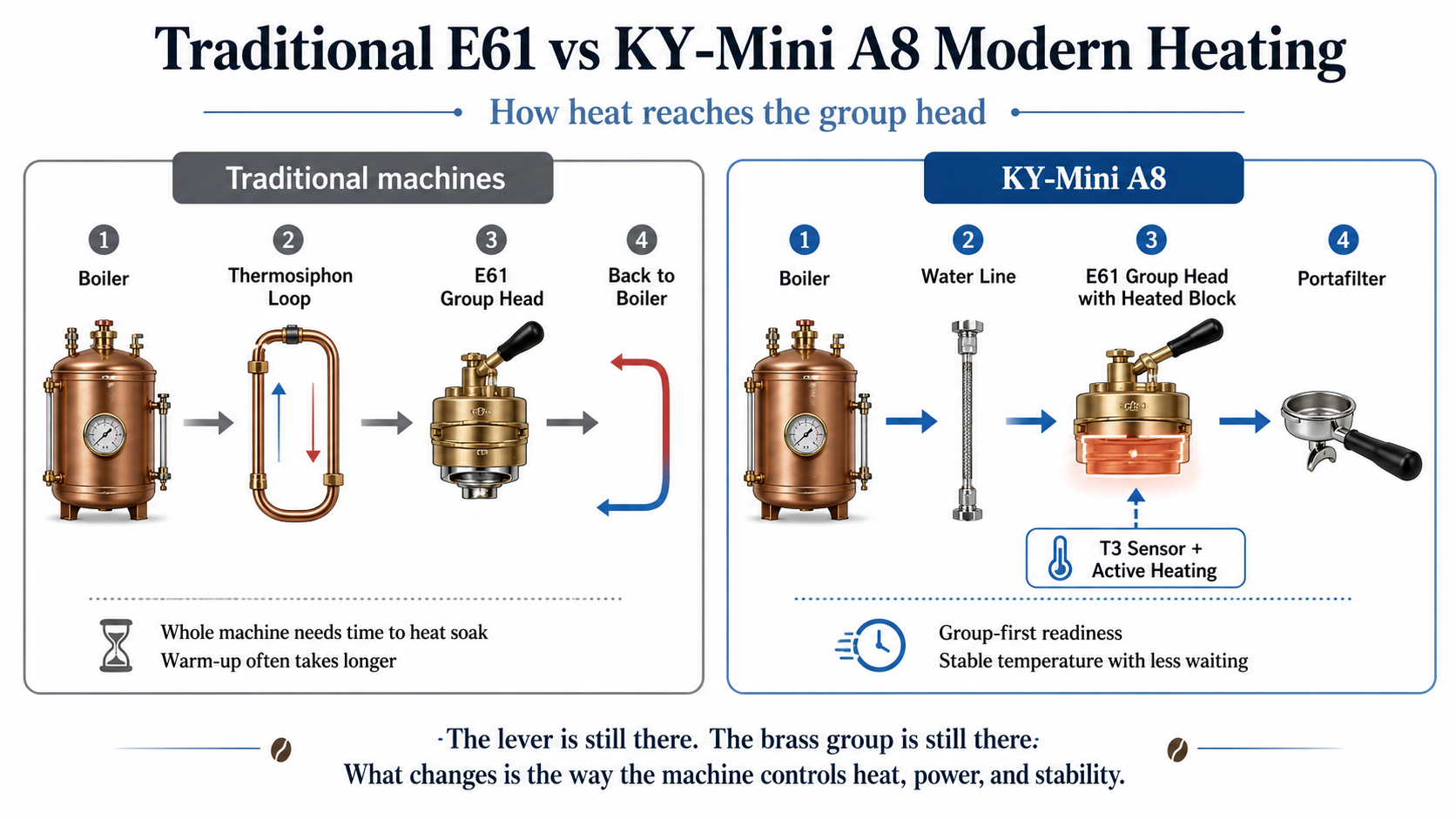

A Quick Visual on move heat
Traditional machines move heat like this:
Boiler → Thermosiphon Loop → E61 Group Head → Back to Boiler
The KY-Mini A8 keeps the water path simple and puts the intelligence where the shot happens:
Boiler → Water Line → E61 Group Head with Heated Block → Portafilter
↑
T3 Sensor + Active Heating
There is no need to wait for the entire machine body to soak up heat before the group becomes ready. There is also less concern about a stalled thermosiphon when the user only wants to grind, dose ground coffee, and pull one or two shots.
This design does not remove the soul of the E61 espresso machine. The lever is still there. The brass group is still there. The tactile espresso workflow is still there. What changes is the way the machine controls heat, power, and stability.

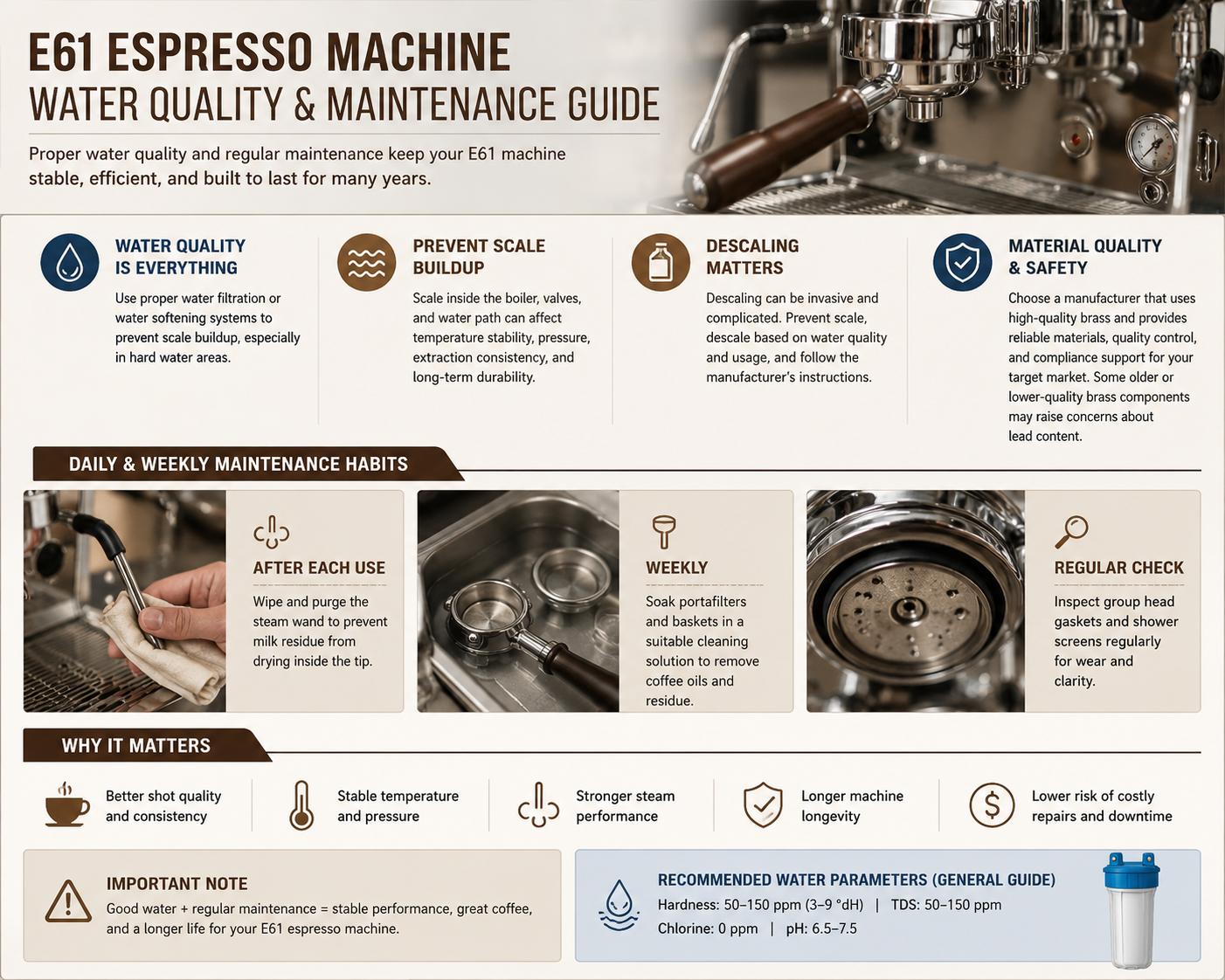

Water Quality, Maintenance, and Long-Term Serviceability
Like any espresso machine, an E61 machine performs best when water quality and maintenance are handled properly. Experts generally recommend using proper water filtration or water softening systems to reduce scale buildup, especially in areas with hard water. Scale inside the boiler, valves, and water path can affect temperature stability, pressure, extraction consistency, and long-term durability.
Descaling an E61 espresso machine can be more invasive and complicated than basic cleaning because scale may build up inside the boiler and internal water circuit. For this reason, prevention is usually better than emergency repair. Users should maintain proper water filtration, descale the machine based on water quality and usage, and follow the manufacturer’s maintenance instructions.
Daily and weekly service habits also matter. After each use, wipe and purge the steam wand to prevent milk residue from drying inside the tip. Soak portafilters and baskets weekly in a suitable cleaning solution, and inspect group head gaskets and shower screens regularly. These simple maintenance steps help protect shot quality, steam performance, and machine longevity.
For buyers comparing different brands on the market, material quality is another important factor. Some older or lower-quality brass components in coffee equipment may raise concerns about lead content, so commercial buyers should choose a manufacturer that can provide reliable materials, quality control, and compliance support for the target market.
Why Choose KY-Mini A8 as Your First Machine or Replacement Machine?
For home baristas, the KY-Mini A8 offers a practical way to move beyond basic espresso machines without losing the classic E61 lever experience. It keeps the familiar E61 group head, brass group structure, mechanical pre infusion, and compatibility with common baskets, gaskets, and replacement parts, while adding modern heating technology for better temperature control and extraction consistency.
For cafés, small shops, and professional coffee service, the KY-Mini A8 is built to deliver more stable performance during daily use. Its heated E61 group head, dual boiler setup, steam wand, pressure control, and compact commercial-oriented design help maintain shot quality, steam power, and workflow efficiency in a busy café environment.

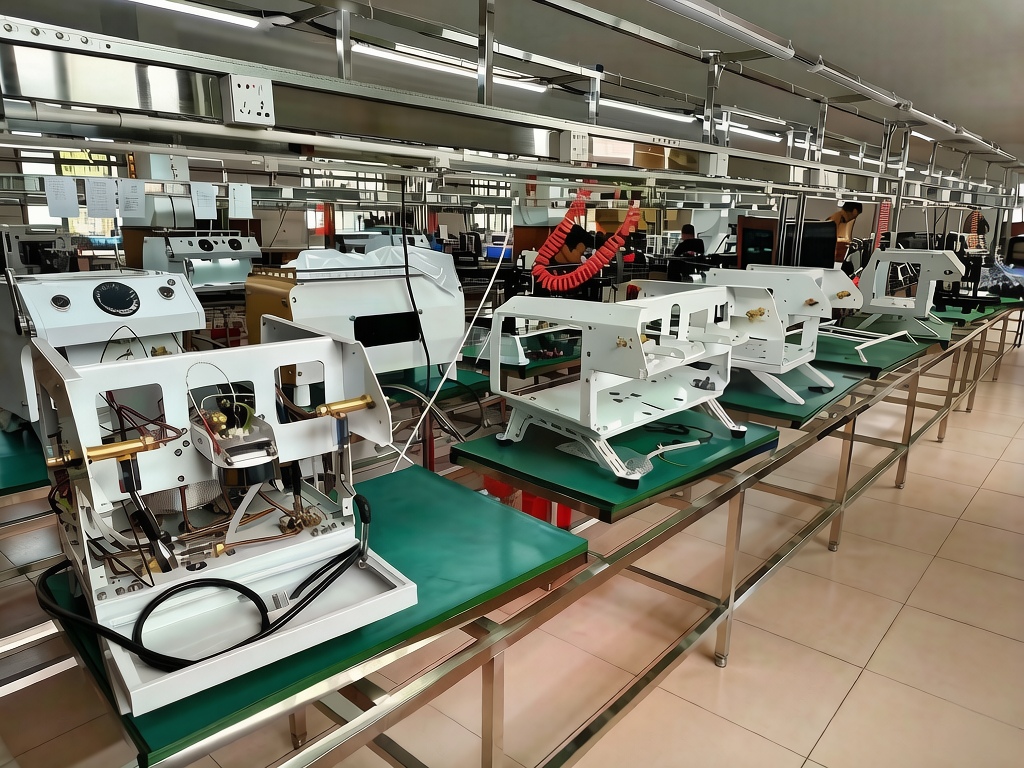

If you are sourcing an E61 coffee machine China build or looking for E61 coffee machine wholesale options, the KY-Mini A8 gives your brand a strong combination of classic E61 design and modern thermal stability. As a coffee machine manufacturer, Huazell can offer OEM/ODM support, customized design options, technical service, product materials, and coffee grinder equipment for distributors, coffee equipment brands, and commercial espresso machine buyers.
At the end of the day, the KY-Mini A8 is still an E61 espresso machine at heart. You get the same lever feel, the same E61 group identity, and the same proven durability that made the Faema E61 design famous around the world. What changes is the daily user experience: faster readiness, easier temperature control, more consistent espresso extraction, and less unnecessary waiting.
Send an inquiry and get the KY-Mini A8 instruction!
