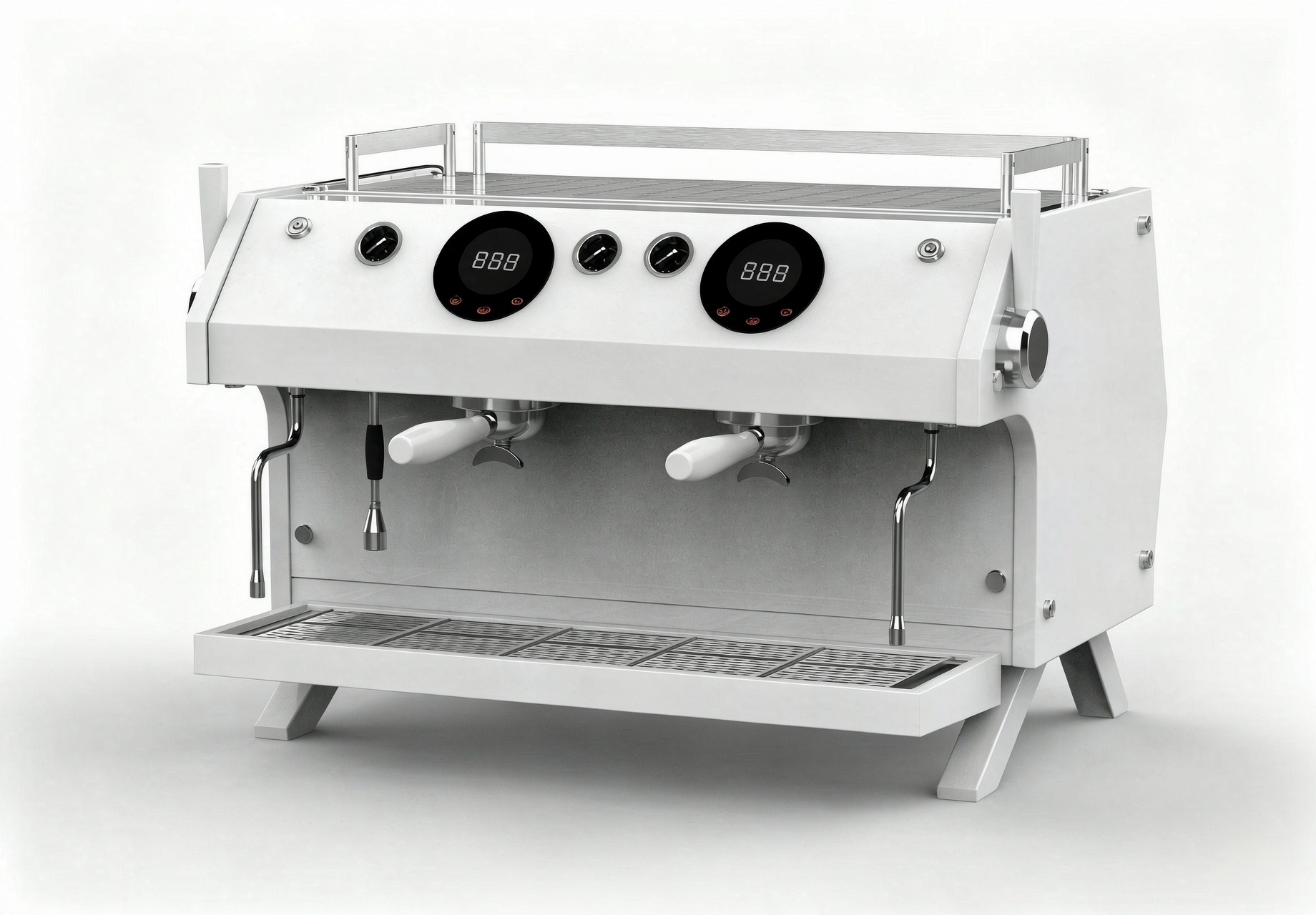

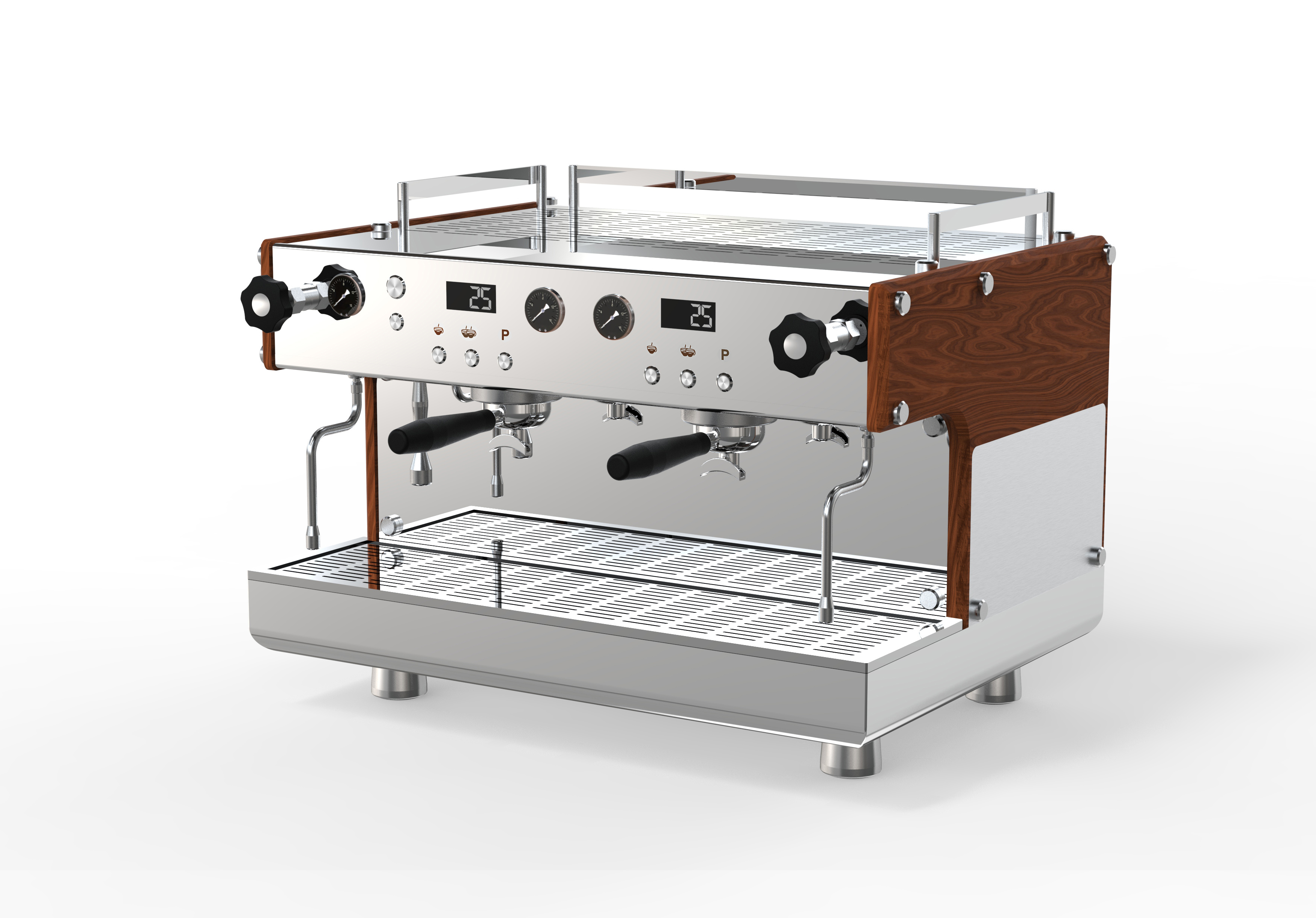

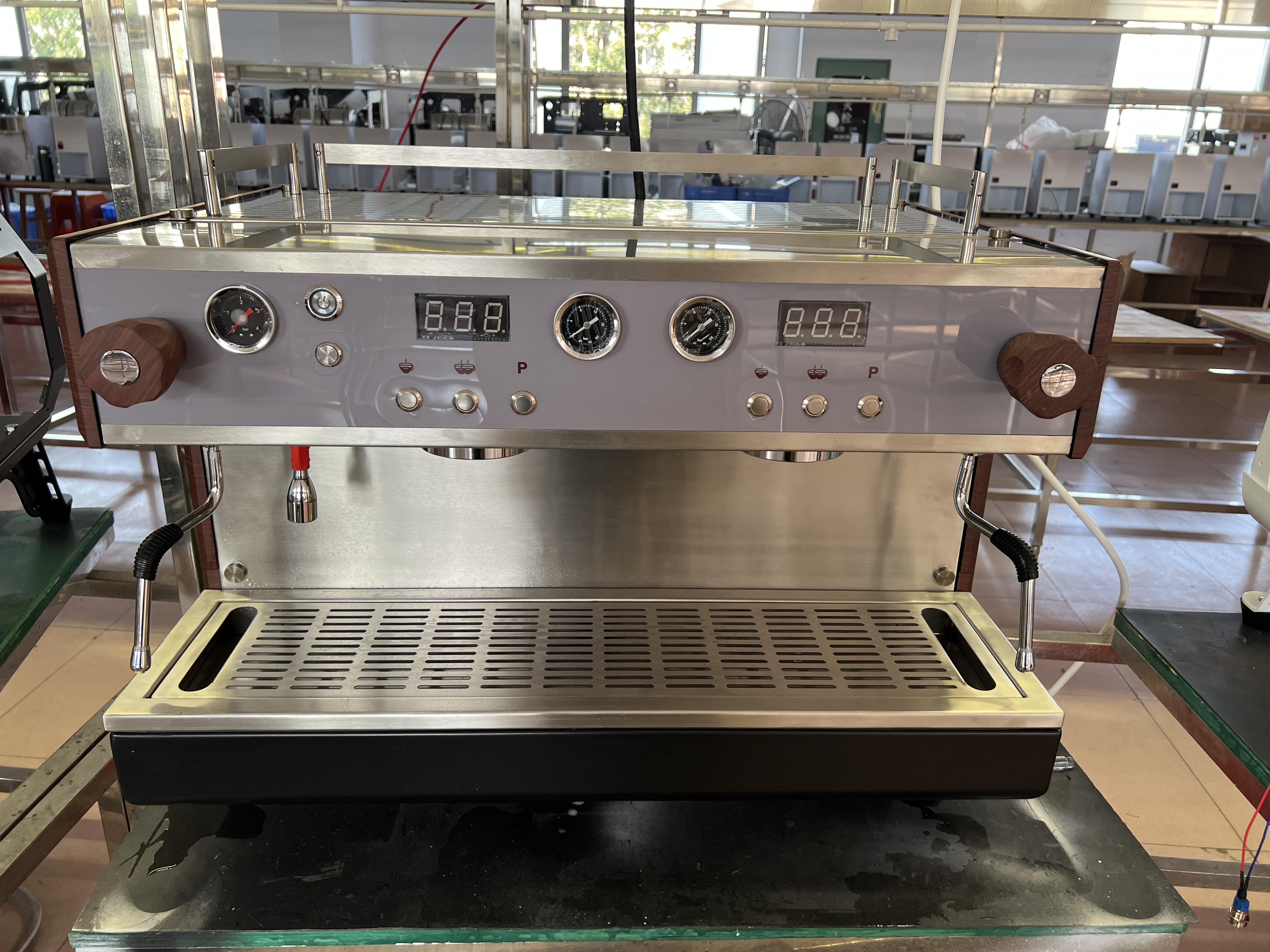

KY-228 2 Group Commercial Semi Automatic Espresso Machine

The Smart Upgrade Solution for Growing Cafés That Need More Capacity and Better Workflow

A café's equipment needs change as the business grows.

Many coffee shops start with a single group espresso machine. However, as customer traffic increases, the limitations become obvious:

• Two customers order coffee at the same time

• Multiple milk drinks need to be prepared

• Baristas spend more time waiting for extraction

• Peak-hour service becomes slower

At this stage, upgrading to a larger machine is often necessary.

However, not every business needs a three-group espresso machine.

A three-group machine may bring:

• Higher investment cost

• Larger counter requirements

• Higher energy consumption

• More capacity than daily demand requires

The KY-228 2 Group Commercial Semi Automatic Espresso Machine is designed as a practical middle solution.

It provides:

• Dual extraction capability

• Professional commercial stability

• Strong steam performance

• Efficient workflow

This helps growing cafés increase productivity without over-investing in unnecessary capacity.

Designed for Businesses Entering the Next Growth Stage

When a Single Group Machine Is No Longer Enough

A single group espresso machine works well for:

• New cafés

• Low-volume coffee shops

• Small beverage counters

But as customer flow increases, operational pressure appears.

Typical peak-hour situation:

A café receives multiple orders:

• 2 Lattes

• 1 Cappuccino

• 2 Americanos

• 1 Espresso

The barista needs to:

• Extract espresso

• Steam milk

• Prepare drinks

• Manage new incoming orders

With only one group head, espresso preparation becomes the bottleneck.

How KY-228 Improves Café Workflow

Two Baristas, Two Brewing Positions

The biggest advantage of a 2 group commercial espresso machine is not only higher output.

It is better workflow organization.

KY-228 allows:

Barista A

Focus on:

• Espresso extraction

• Americano preparation

• Shot management

Barista B

Focus on:

• Milk steaming

• Latte preparation

• Customer orders

This reduces waiting time between operations and creates a smoother workflow during busy periods.

Real Application Scenario 1

Specialty Coffee Shop Upgrade

Business Situation

A specialty café currently uses a single group machine.

Daily challenges:

• Morning rush creates queues

• Baristas cannot prepare multiple drinks efficiently

• Customers wait longer during peak periods

The owner does not want:

• A large three-group machine

• Excessive investment

• A machine that occupies too much space

KY-228 Solution

KY-228 provides:

• ✓ Two independent brewing groups

• ✓ Professional steam capacity

• ✓ Better bar workflow

• ✓ More efficient peak-hour operation

It allows the café to increase service capability while keeping equipment investment practical.

Real Application Scenario 2

Restaurant or Hotel Coffee Station

Restaurants and hotels often have different requirements from cafés.

They need:

• Reliable operation

• Easy workflow

• Consistent coffee quality

• Professional appearance

KY-228 fits applications such as:

• Hotel breakfast areas

• Restaurant beverage stations

• Dessert shops

• Bakery cafés

During service periods, the machine can handle espresso drinks while maintaining stable steam performance for milk-based beverages.

Built for Commercial Reliability, Not Just More Output

Higher output means nothing without consistency.

For commercial users, the important question is:

Can the machine maintain espresso quality from the first drink to the hundredth drink?

KY-228 focuses on three key areas.

1. Stable Temperature Control During Real Service

Temperature instability can cause:

• Different espresso flavors

• Difficult recipe adjustment

• Inconsistent customer experience

KY-228 uses a T3 Heating System with a Brew Boiler Pre-Heating Pipe System.

The system improves:

• Heating efficiency

• Temperature consistency

• Extraction repeatability

Adjustable parameters:

• Extraction temperature

• Steam temperature

• Pre-infusion time: 1–9 seconds

• Water flow

• Coffee volume

Baristas can adjust the machine according to:

• Different coffee origins

• Different roasting levels

• Different recipes

2. Independent Boiler Design for Better Workflow

KY-228 uses a three-boiler configuration.

10L Steam Boiler

Power: 3000W

Designed for:

• Continuous milk steaming

• Multiple milk beverages

• Busy café service

Two Independent Brew Boilers

Capacity: 2 × 0.8L

Power: 1000W × 2

Benefits:

• Stable brewing temperature

• Reduced thermal interference

• Better extraction consistency

3. KY-228 Real Continuous Espresso Extraction Performance

Unlimited Consecutive Double-Shot Extraction Under Normal Café Operating Conditions

To evaluate commercial performance, KY-228's continuous extraction capability is considered in the context of real café workflows.

Normal Café Operating Performance

Under normal café operating conditions, KY-228 supports continuous double-shot extraction without a preset cup limit from each group head, with an interval of ≤ 5 seconds between consecutive double-shot cycles. Brewing temperature variation remains within ±0.3–0.5°C under these operating conditions.

During this workflow:

• Brewing temperature remains within the stated fluctuation range

• Espresso extraction performance remains consistent

• No fixed cup limit applies under the stated operating conditions

The workflow includes natural operating steps such as:

• Grinding

• Dosing

• Tamping

• Extraction

• Portafilter preparation

With intervals of ≤ 5 seconds between double-shot cycles, KY-228 is designed to maintain stable brewing temperature during continuous service.

For Dual Group Operation

Since KY-228 is equipped with two independent heated saturated group heads, the machine can support simultaneous espresso preparation from both groups.

Under real café operating conditions:

• Each group head supports consecutive double-shot extraction without a preset cup limit under the stated conditions

• Both group heads can operate simultaneously to support higher overall service capacity

Professional Extraction System

Designed for Consistent Espresso Quality

KY-228 includes professional components normally expected in commercial espresso equipment.

FOT Rotary Pump (PA204)

Provides:

• Stable pressure

• Smooth operation

• Commercial durability

GICAR Flow Meter

Ensures:

• Accurate water measurement

• Repeatable espresso recipes

Real Extraction Pressure Monitoring

Many machines display pump pressure only.

KY-228 displays:

Actual extraction pressure during brewing

This gives baristas more accurate information when adjusting espresso recipes.

Why Choose KY-228 Instead of Other Configurations?

Compared With Single Group Espresso Machines

KY-228 provides:

• Higher workflow efficiency

• Two simultaneous extraction points

• Better support for growing customer volume

Suitable when your business is moving beyond entry-level equipment.

Compared With Three Group Espresso Machines

KY-228 provides:

• Lower investment requirement

• Smaller footprint

• More practical capacity

Suitable for businesses that need professional performance without unnecessary oversizing.

KY-228 Ideal Customer Profile

Choose KY-228 If You Are:

A Growing Café Owner

You need more capacity but want to control investment.

A Restaurant Owner

You want professional coffee service without dedicating excessive space.

A Coffee Equipment Distributor

You need a reliable mid-range commercial espresso machine for mainstream café applications.

Product Highlights

KY-228 2 Group Commercial Espresso Machine

• ✓ 5700W commercial heating system

• ✓ 2 independent brew boilers

• ✓ 10L steam boiler

• ✓ T3 temperature control system

• ✓ Dual heated saturated groups

• ✓ Rotary pump system

• ✓ Real extraction pressure display

• ✓ Automatic backflush function

• ✓ Pure copper brew head

• ✓ Continuous stability testing

KY-228 Technical Specifications

Feature	Specification
Model	KY-228
Type	2 Group Commercial Semi Automatic Espresso Machine
Voltage	110V–220V / 50–60Hz
Total Power	5700W
Steam Boiler	10L / 3000W
Brew Boiler	2 × 0.8L / 1000W × 2
Group Heating	200W × 2
Heating System	T3 Heating System
Pump	FOT Rotary Pump PA204
Flow Meter	Italian GICAR
Group Head	Independent Heated Saturated Group
Brew Head	100% Pure Copper
Pressure Display	Real Extraction Pressure Gauge
Backflush	Automatic
Size	780 × 610 × 525mm
Net Weight	60KG

KY-228 2 Group Commercial Espresso Machine

The Right Balance Between Capacity, Investment and Daily Performance

KY-228 is built for businesses that have outgrown single group machines but do not need oversized equipment.

It delivers the productivity required for growing cafés while maintaining:

• Professional espresso quality

• Reliable operation

• Practical ownership cost

For many coffee businesses, KY-228 is not simply an espresso machine upgrade.

It is the next step in business growth.

FAQ

Q1: How does the T3 heating system and brew-boiler pre-heating pipe work on the KY-228?

A: The T3 system manages three independent heating zones (10L steam boiler and 2 × 0.8L brew boilers) for precise thermal separation. Inside each brew boiler, a pre-heating pipe pre-warms incoming water before it enters the main chamber, helping reduce heat-up time and minimize temperature fluctuation during back-to-back shots.

Under normal café operating conditions, this system supports a brewing temperature of approximately 92°C, with fluctuations within ±0.3–0.5°C when the interval between consecutive double-shot cycles is ≤ 5 seconds.

Q2: Can the KY-228 brew espresso and steam milk at the same time? Is it suitable for latte-heavy menus?

A: Yes. The 10L steam boiler and two 0.8L brew boilers operate independently, allowing baristas to pull espresso shots from both groups while steaming milk. Paired with the Italian FOT PA204 rotary pump and GICAR flowmeter, the system is designed to support stable pressure and water flow during commercial operation. This makes KY-228 well-suited for latte, cappuccino, and flat-white menus where simultaneous brewing and steaming are essential during peak hours.

Q3: How stable is the KY-228 espresso machine during continuous high-volume operation?

A: KY-228 has undergone extreme continuous-flow testing at 1200ML of continuous water output. Under this extreme test condition, the brewing temperature remains at approximately 92°C before gradually decreasing by 3–6°C after the test threshold is exceeded. The system then recovers temperature within approximately 8–13 seconds.

Under normal café operating conditions, KY-228 supports continuous double-shot extraction without a preset cup limit, with an interval of ≤ 5 seconds between consecutive double-shot cycles and brewing temperature variation within ±0.3–0.5°C under the stated workflow.

Q4: Can the KY-228 meet the requirements of specialty coffee shops and professional baristas?

A: Yes. KY-228 allows adjustment of key extraction parameters, including extraction temperature, steam temperature, pre-infusion time (1–9 seconds), water flow, coffee volume, and extraction time. These controls help baristas optimize recipes for different coffee origins and roasting profiles.
