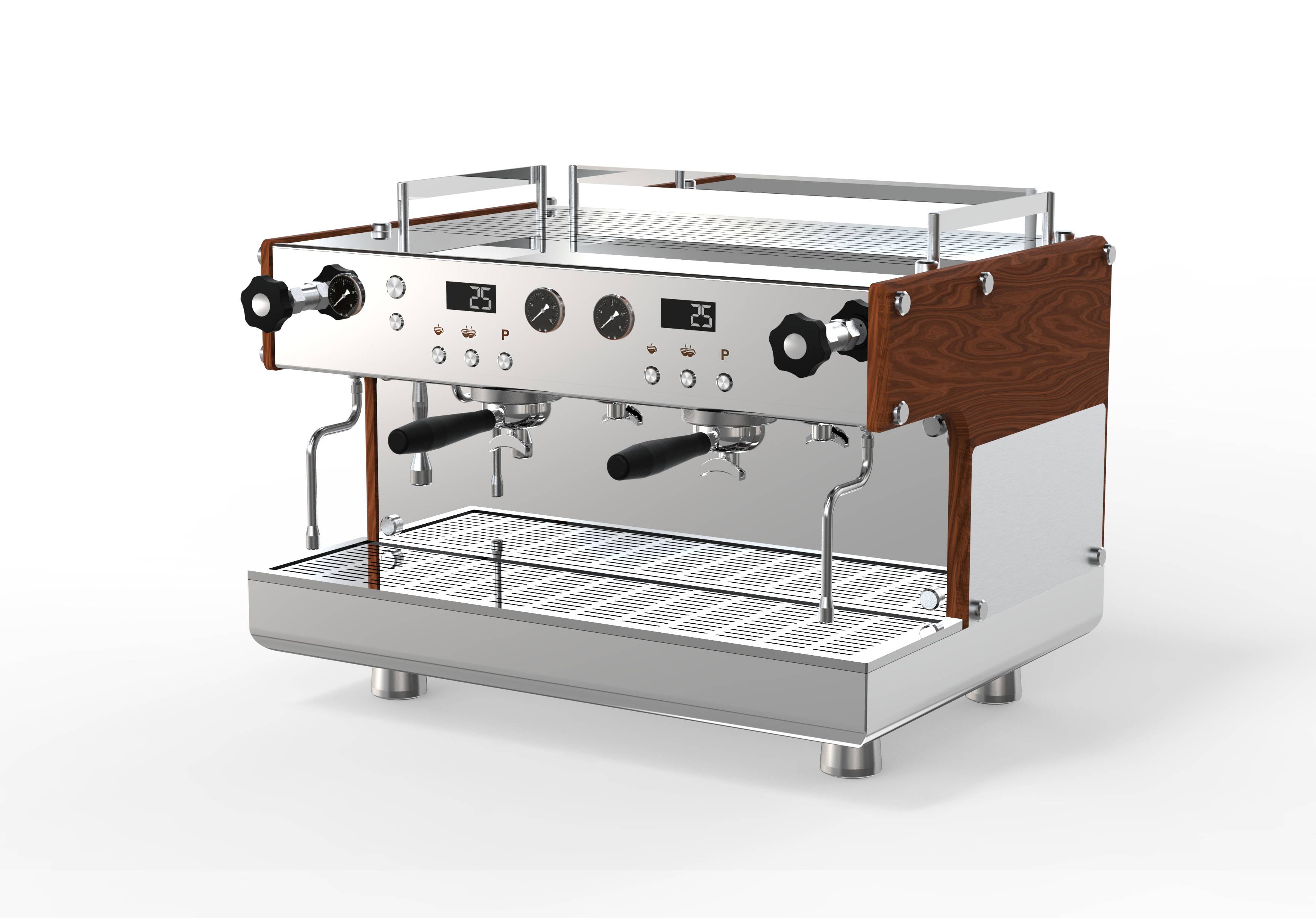

KY-168 Commercial Espresso Machine
T3 Triple Boiler Espresso Machine Designed for Continuous Commercial Coffee Production
Designed for Cafés That Cannot Stop During Peak Hours
In a busy café, the biggest challenge is not making one perfect espresso — it is maintaining the same quality when hundreds of orders come continuously.
The KY-168 commercial espresso machine is engineered for continuous commercial espresso production.
Through our real extreme continuous-flow test:
2500ML Continuous Water Output
✅ Brewing temperature remained stable at 92°C
✅ No temperature drop within the first 2500ML output
✅ Only after exceeding 2500ML did temperature gradually decrease
✅ Recovery back to working temperature within 8–13 seconds
This proves KY-168 has strong thermal capacity for continuous espresso production without a predefined cup limit.
In real café workflows, where every espresso includes grinding, dosing, tamping, extraction, and serving intervals, KY-168 can continuously support high-volume coffee service throughout the business day.
Real Café Performance: Designed for Continuous Daily Operation
Laboratory specifications are important, but real café operation is the true test.
In our partner café chains, KY-168 has demonstrated excellent performance during daily high-volume service. The machine continues working smoothly through busy periods, maintaining stable extraction quality from the first espresso to the last order of the day.
During continuous peak-hour operation, KY-168 helps baristas:
- Keep producing espresso without waiting for temperature recovery
- Maintain consistent extraction quality across high order volumes
- Handle long working hours with stable performance
- Focus on serving customers instead of managing machine limitations
For commercial coffee businesses, KY-168 is built to keep working when demand is highest.
T3 Heating System: Built for Continuous Commercial Operation
KY-168 adopts a professional T3 PID temperature control system with pre-heating pipe & 3 independent boilers:
- 10L steam boiler
- 2 × 0.8L brew boilers
The independent boiler structure allows:
- Continuous steam supply
- Stable extraction temperature
- Reduced temperature interference
- Reliable peak-hour performance
Unlike traditional espresso machines that struggle during continuous demand, KY-168 separates brewing and steaming tasks to maintain consistent beverage quality.
Fast Heat-Up for Efficient Café Operation
KY-168 reduces waiting time before service:
Brew Boiler Heating
28°C → 92°C
- Approx. 3.5 minutes
Steam Boiler Heating
- Heating to 122°C
- Approx. 7.5 minutes
Fast preparation helps coffee businesses improve daily operating efficiency.
Professional Espresso Control
KY-168 allows baristas to adjust:
- Brew head temperature: 88–95°C
- Steam temperature
- Extraction temperature
- Pre-infusion time: 1–9 seconds
- Water flow
- Coffee volume
Helping professional coffee businesses maintain recipe consistency.
Commercial-Grade Components
KY-168 is equipped with:
- Italian GICAR flowmeter
- Italian ODE solenoid valves
- FOT rotary pump PA204
- Electronic pressure sensor
- Real-time extraction pressure display
- Steam pressure gauge
The extraction pressure display shows actual brewing pressure, helping baristas achieve accurate extraction control.
Copper Heat Transfer Design
For better thermal performance and durability:
- 100% pure copper brew head
- Full copper piping design
The copper structure improves heat transfer efficiency and supports stable commercial operation.
Key Specifications
| Item | Specification |
|---|---|
| Model | KY-168 |
| Type | Commercial Espresso Machine |
| Heating System | T3 Heating System |
| Boiler System | 3 Independent Boilers |
| Steam Boiler | 10L / 3000W |
| Brew Boiler | 0.8L × 2 / 1000W × 2 |
| Total Power | 5700W |
| Voltage | 110V-220V, 50/60Hz |
| Group Head | Heated Saturated Group |
| Pump | FOT Rotary Pump PA204 |
| Flowmeter | GICAR |
| Cleaning | Automatic Backflush |
| Weight | 70KG |
| Size | 880×680×480mm |
KY-168 vs KY-T33: Different Solutions for Different Commercial Needs
KY-168: Reliable Continuous Performance with T3 Heating System
KY-168 is designed for cafés and coffee businesses that require stable daily production, consistent extraction, and excellent cost-performance balance.
With its T3 heating system, pre-heating pipe technology, and 3 independent boilers, KY-168 delivers reliable temperature stability and continuous espresso production during busy café operations.
It is an ideal choice for:
- Specialty coffee shops
- Restaurant cafés
- Medium to high-volume coffee businesses
- Coffee equipment distributors looking for a competitive commercial solution
KY-T33: Higher Thermal Capacity for Extreme Commercial Demand
KY-T33 is designed for businesses requiring maximum thermal capacity and higher workload capability.
Featuring an advanced T5 heating system, KY-T33 provides additional heating power and thermal reserve for extremely demanding commercial environments, such as large café chains and high-volume coffee projects.
It is more suitable for:
- Large-scale coffee operations
- High-volume commercial projects
- Customers requiring maximum performance margin
Simple Comparison
| KY-168 | KY-T33 | |
|---|---|---|
| Heating System | T3 System | T5 System |
| Positioning | Reliable commercial performance | High-performance commercial solution |
| Main Advantage | Stable continuous operation with excellent value | Higher thermal capacity for extreme workloads |
| Target Users | Cafés, restaurants, coffee businesses | Large cafés, chains, demanding projects |
KY-168 is not a compromise. It is a professional commercial espresso machine optimized for businesses that need reliable continuous performance with an excellent balance between capacity, stability, and investment.
