KY-T33 3 Group Commercial Semi Automatic Espresso Machine

Maximum Throughput with Independent Temperature Control and Peak-Hour Stability

Designed for high-volume cafés, coffee chains, hotels, and professional beverage operations requiring maximum workflow efficiency.

The KY-T33 3 Group is the high-capacity version of the KY-T33 commercial espresso machine platform.

It shares the similar professional architecture as the 2 Group model, including:

• T7 PID temperature control system (Upgraded from T5 to T7)
• Independent heated saturated groups
• Professional water delivery system
• Italian FOT rotary pump
• Pure copper brew head and piping system

The main difference is the addition of a third extraction group, allowing more baristas to work simultaneously and increasing productivity during peak service periods.

With a 7200W heating system, four independent boilers, and three dedicated brew boilers, KY-T33 3 Group is engineered for businesses where speed, consistency, and efficiency are critical.

---

Built for High-Volume Commercial Environments

A high-volume café does not only need excellent espresso quality.

It needs equipment that can handle:

• Continuous espresso extraction
• Multiple drinks prepared simultaneously
• Long operating hours
• Heavy morning rush periods
• Multiple baristas working together

KY-T33 3 Group is designed for commercial locations where every minute during peak hours matters.

---

Recommended Applications

Large Specialty Coffee Shops

For cafés requiring maximum espresso output without compromising extraction consistency.

Ideal for:

• Espresso
• Cappuccino
• Latte
• Flat White
• Americano

The adjustable brewing parameters allow baristas to fine-tune extraction according to different coffee profiles.

---

Coffee Chains & High-Volume Cafés

KY-T33 3 Group is designed for locations with continuous customer flow.

Suitable for:

• Coffee chains
• Shopping mall cafés
• Airport cafés
• Commercial beverage counters
• High-traffic independent cafés

Three extraction groups allow multiple baristas to work simultaneously, reducing waiting time during peak hours.

---

Hotels & Restaurants

Designed for demanding hospitality environments:

• Hotel breakfast service
• Large restaurant beverage stations
• Conference and catering operations

The powerful 10L steam boiler provides continuous steam capacity for large quantities of milk-based drinks.

---

High-Volume Espresso Production Without Limits

Designed for Maximum Commercial Throughput

In high-demand café environments, the biggest challenge is not making a single espresso shot — it is maintaining consistent quality while multiple orders are being prepared continuously.

During peak service periods:

• Multiple baristas may work simultaneously
• Several espresso orders need to be prepared at the same time
• Continuous extraction is required for hours

To meet these demanding conditions, KY-T33 3 Group is engineered for high-volume espresso production with stable performance and no practical production limit.

---

Three-Group Independent Brewing System

Maximum Workflow Efficiency During Peak Hours

Compared with a 2-group espresso machine, the KY-T33 3 Group provides:

✓ Three independent extraction stations
✓ Higher simultaneous production capacity
✓ More flexible barista workflow
✓ Reduced waiting time during rush periods

Each group head operates independently, allowing multiple baristas to extract espresso at the same time while maintaining stable brewing performance.

The limitation is no longer the machine’s extraction capability — but the café’s own order preparation speed.

---

Continuous Espresso Production Test

Built for Long-Term Commercial Operation

KY-T33 3 Group has been designed and tested for demanding commercial environments:

• Extended operating hours
• Continuous espresso preparation
• High customer traffic periods
• Multiple operators working together

The powerful heating system and independent brewing structure continuously support espresso production throughout the busiest service periods.

Even under heavy workload, the machine maintains:

• Stable brewing temperature
• Consistent extraction quality
• Fast thermal recovery
• Reliable performance from the first cup to the last cup

---

Real Café Performance: Unlimited Cups in Daily Operation

A common question from commercial buyers:

"How many cups can KY-T33 3 Group produce per hour?"

The answer depends mainly on:

• Barista workflow
• Grinding speed
• Customer ordering patterns
• Cup preparation process

Not the machine itself.

Under real café conditions:

KY-T33 3 Group can continuously produce espresso without a practical cup limit.

It is built for:

✓ Large cafés
✓ Specialty coffee shops with heavy traffic
✓ Hotels and restaurants
✓ Chain coffee operations
✓ High-volume commercial environments

Real-World Café Operation Verification:

In a continuous rotation scenario with 2–3 baristas working simultaneously, where one barista finishes extraction and the next starts immediately with less than 5 seconds​ between shots, the machine achieves unlimited consecutive extractions with ±0.3-0.5°C temperature drop​ throughout.

This exceptional thermal stability makes the machine suitable for high-volume cafés, coffee chains, hotels, and restaurants requiring continuous espresso production.

---

Four Independent Boiler System

Separate Brewing and Steam Performance

KY-T33 3 Group uses a professional four-boiler configuration.

---

10L Steam Boiler

3000W

Designed for:

✓ Powerful steam production
✓ Continuous milk preparation
✓ High-volume beverage service

---

Three Independent Brew Boilers

3 × 0.8L

1000W × 3

Each brew group has its own dedicated heating system.

Benefits:

• Stable extraction temperature
• Reduced thermal interference
• Consistent espresso quality across all groups
• Better workflow efficiency for multiple baristas

---

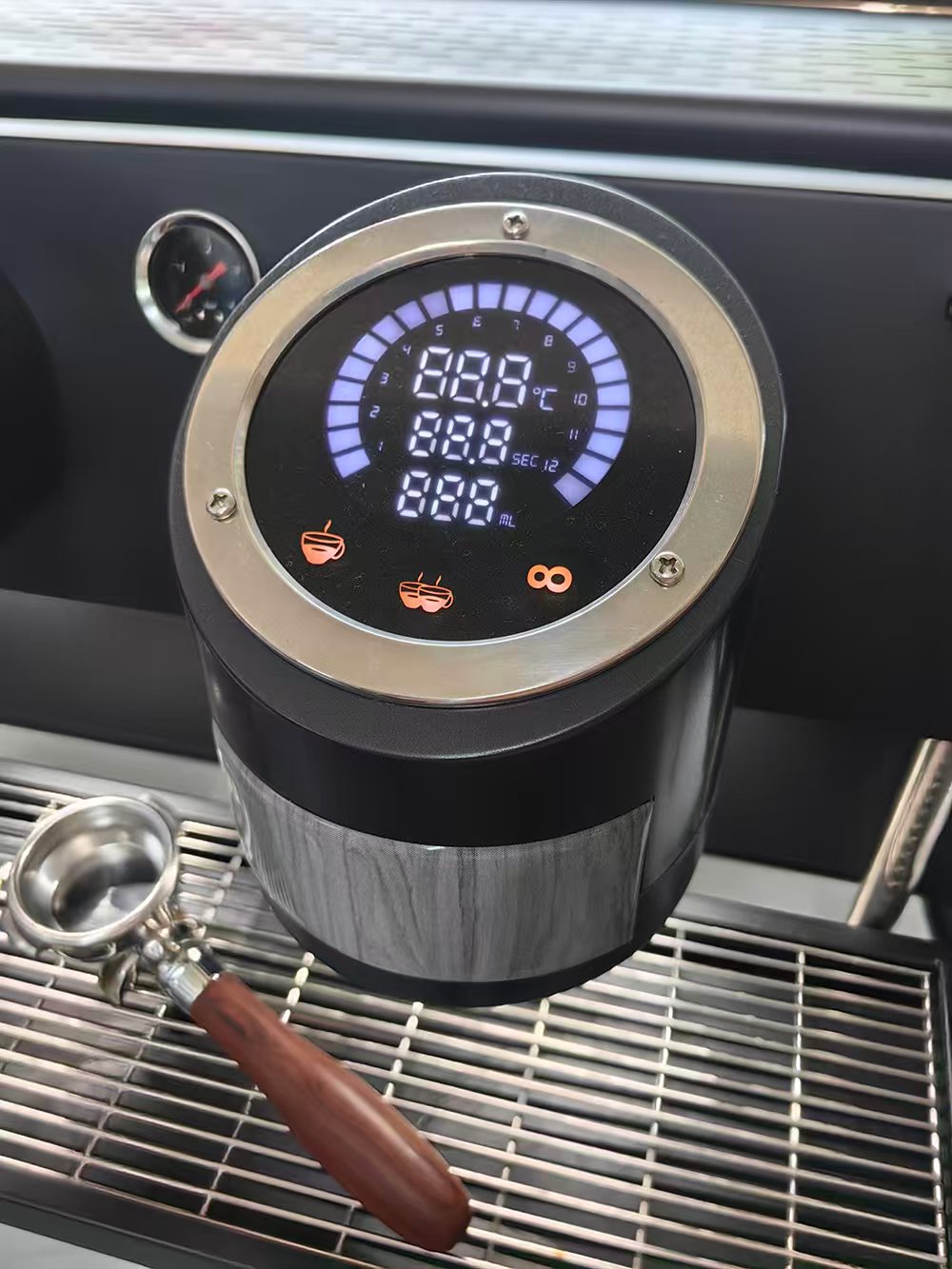

T7 PID Temperature Control Heating System

KY-T33 3 Group features the T7 PID temperature control heating system, allowing precise adjustment of:

• Brew head temperature: 88–95°C
• Brew boiler temperature
• Steam boiler temperature
• Pre-infusion time: 1–9 seconds
• Water flow
• Coffee volume

This gives professional users greater control over different:

• Coffee origins
• Roasting profiles
• Extraction recipes

---

Independent Heated Saturated Group Head

Each extraction group is independently heated to maintain stable brewing conditions.

The system provides:

• Better temperature consistency
• More stable extraction performance
• Repeatable espresso quality

Combined with:

• 100% pure copper brew head
• All copper piping system

KY-T33 3 Group delivers excellent thermal performance for commercial environments.

---

Professional Water Delivery System

Consistent espresso quality requires precise water control and stable pressure performance.

KY-T33 3 Group is equipped with professional-grade components:

---

Italian FOT Rotary Pump

Provides:

• Stable pressure output
• Smooth operation
• Reliable performance under continuous workloads

---

Electronic Pressure Sensor

Displays:

Real-time extraction pressure at the group head

Instead of only showing pump pressure, baristas can monitor the actual brewing condition.

---

Precision Flow Control Components

Including:

• ODE 2-way & 3-way solenoid valves
• GICAR flow meter

These components ensure accurate water control and consistent extraction.

---

KY-T33 2 Group vs KY-T33 3 Group

Which Configuration Fits Your Business?

Both models share the same core technology platform.

The main difference is workflow capacity.

---

KY-T33 3 Group Technical Highlights

---

Why Choose KY-T33 3 Group?

For Café Owners

✓ Higher output during peak hours
✓ More baristas can work simultaneously
✓ Stable espresso quality throughout the day
✓ Reduced waiting time for customers

---

For Coffee Equipment Distributors

✓ Premium commercial positioning
✓ Suitable for large café projects
✓ Strong technical specifications
✓ Same platform as KY-T33 2 Group for easier product portfolio management

---

KY-T33 3 Group

Built for Coffee Businesses Where Every Second Counts

For high volume coffee operations, productivity and consistency are equally important.

With:

• Three independent brew boilers
• 7200W heating capacity
• T7 PID temperature control
• Continuous extraction
• Professional water delivery system

KY-T33 3 Group provides the performance required for demanding commercial coffee environments.

FAQ:

1. During continuous operation, how many cups per hour can this 3 group commercial espresso machine realistically handle?

Answer:
This 3 group commercial espresso machine is designed for continuous commercial operation. There is no fixed cup-per-hour limitation under normal working conditions — as long as water supply, coffee beans, and barista operation are maintained, the machine can continue producing espresso without stopping.

With three independent brew boilers and a powerful 10L steam boiler, it is suitable for high-volume cafés, restaurants, hotels, and coffee chains requiring nonstop coffee service.

2. What is the brew boiler recovery time during peak operation when making multiple milk-based drinks continuously?

Answer:
We conducted an extreme continuous-flow test to evaluate the thermal stability of the machine.

During the test, the group head continuously dispensed 2500ml of water without interruption. The brewing temperature remained stable, and only after releasing 2500ml of continuous water flow did the temperature begin to drop — from 92°C to 86°C.

After stopping the water flow, the heating system recovered the temperature back to 92°C within approximately 10 seconds.

Real-World Café Operation Verification:

In a continuous rotation scenario with 2–3 baristas working simultaneously, where one barista finishes extraction and the next starts immediately with less than 5 seconds​ between shots, the machine achieves unlimited consecutive extractions with ±0.3-0.5°C temperature drop​ throughout.

This exceptional thermal stability makes the machine suitable for high-volume cafés, coffee chains, hotels, and restaurants requiring continuous espresso production.

3. How stable is the brewing temperature when all three group heads are used simultaneously?

Answer:
The machine delivers excellent temperature stability even when all three groups are working simultaneously.

Each group head has an independent 0.8L brew boiler with PID temperature control, combined with the patented pre-heating line system. This design minimizes temperature fluctuation and ensures consistent espresso extraction for every cup.

4. What is the recommended daily production capacity for this commercial espresso machine in cafés or coffee chains?

Answer:
This professional three group espresso machine is built for high-volume coffee environments and can support continuous daily operation in busy cafés, restaurants, hotels, and chain coffee shops.

There is no strict daily cup limitation. The actual output depends on workflow, barista efficiency, menu type, and water/coffee supply conditions.

5. Can this 3 group espresso machine support OEM customization, including logo, color, packaging, and voltage specifications?

Answer:
Yes. We provides OEM and private label solutions for global coffee brands and distributors.

Customization options include:

• Custom logo and branding
• Machine color options
• Customized packaging
• Voltage and electrical specifications
• Product configuration adjustments

We support both standard production and customized commercial espresso machine projects.
