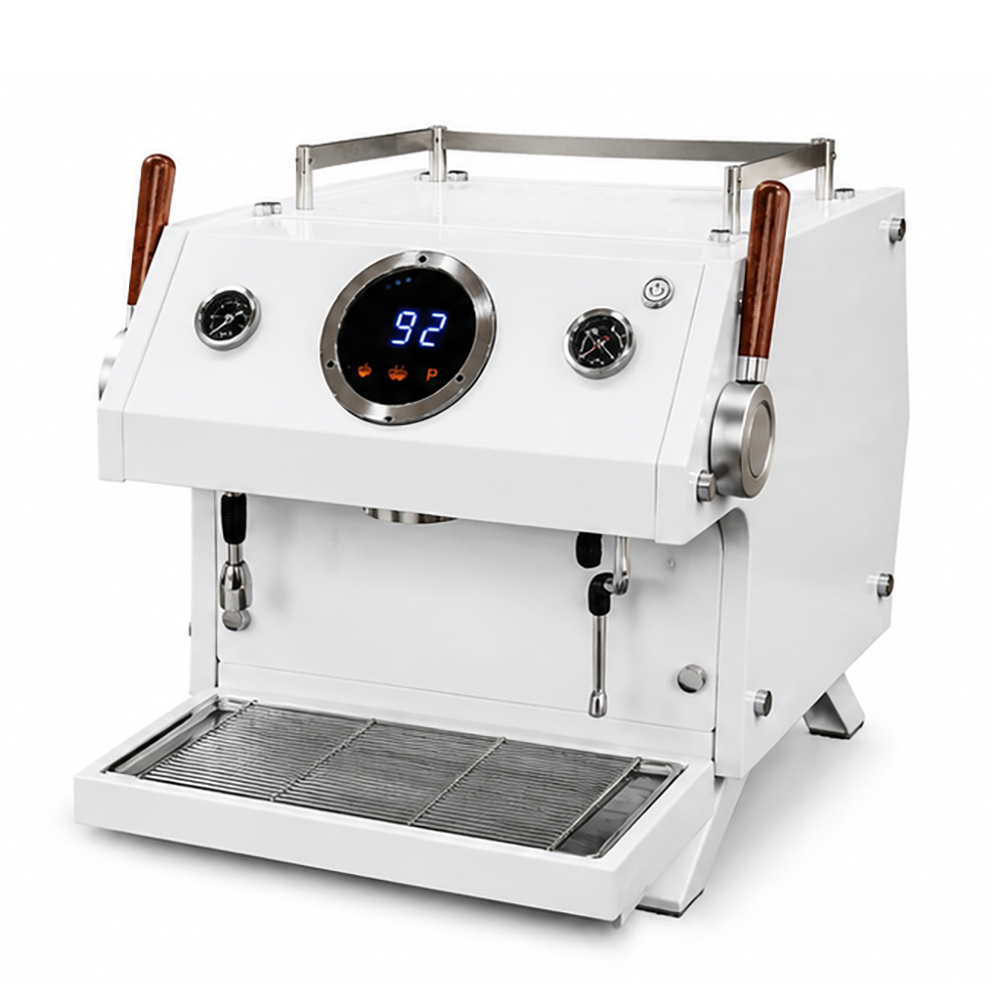

KY-T2 S

Single Group Commercial Espresso Machine Built for Real Café Workflows

Single Group. Commercial Performance. Unlimited Consecutive Extractions.

3900W Commercial Power · 6L Steam Boiler · 0.8L Brew Boiler · T3 Heating System · Independent Heated Group

Need commercial output but don't need two groups working at the same time?
KY-T2 S is designed for exactly that gap.

Built for:
☕ Small Cafés | 🥐 Bakeries | 🍽 Restaurants | 🏨 Boutique Hotels | 🏢 Office Coffee Stations

What problem does KY-T2 S solve?

You need commercial capability — but you don't always need a two-group machine.

KY-T2 S gives you:

• Unlimited consecutive extractions in real café operation
• Highly stable brewing temperature within ±0.3–0.5°C
• Separate steam and brew boilers
• Independent group heating
• Adjustable extraction parameters
• Professional pressure monitoring
• Automatic backflush cleaning
• Compact commercial footprint

One group controls how many shots you can pull at the same time. It does not define how many cups the machine can produce throughout the day.

---

01. The Real Question Isn't "How Many Groups?"

It's "Can the Machine Keep Up With My Workflow?"

Many buyers assume:

Single group = low volume = home or light-duty use.

That's not necessarily true.

The number of groups determines how many extractions can happen simultaneously.

But for a café where one barista works through a normal workflow —

Grind → Dose → Tamp → Extract → Steam → Serve → Repeat

—the more important question is whether the machine can recover and maintain its working conditions between extractions.

That's where KY-T2 S is designed to make a difference.

Unlimited Consecutive Extractions in Real Café Operation

Under normal café workflow, KY-T2 S supports unlimited consecutive extractions through its single group.

During back-to-back shots, brewing temperature remains highly stable within:

±0.3–0.5°C

This makes the machine suitable for businesses that experience:

• Repeated morning orders
• Continuous espresso preparation
• Milk-based drinks
• Short periods between extractions
• One-barista operation
• Small but active commercial counters

Single Group Doesn't Mean Single-Cup Capacity

You can still operate throughout the business day.

The difference is simple:

Single group: one extraction point at a time.

Multi-group: multiple extraction points simultaneously.

For many small commercial businesses, one well-engineered group can be enough.

---

02. Stop Choosing a Bigger Machine Just Because You're Afraid of Temperature Drop

Commercial Brewing Starts With Temperature Stability

One of the biggest concerns when buying a commercial espresso machine is simple:

What happens when I keep making coffee?

A machine may perform well during the first few shots.

The real test begins when the barista keeps working.

Repeated extraction puts continuous demand on the brewing system. At the same time, milk steaming creates another heat demand.

KY-T2 S addresses this with a separated heating architecture.

---

03. Two Separate Boilers

Steam Stays Steam. Brewing Stays Brewing.

KY-T2 S uses two independent boilers:

6L Steam Boiler

2500W

Dedicated to:

• Steam production
• Milk steaming
• Hot-water demand

0.8L Brew Boiler

1000W

Dedicated to:

• Brewing water
• Extraction temperature control

This separation means the steam system and brewing system have their own heating resources.

Why does this matter in a café?

Because making a cappuccino isn't only about pulling espresso.

The barista may be:

Extracting espresso + steaming milk + preparing the next drink

at nearly the same time.

A dedicated steam boiler helps prevent steam demand from directly taking the heating capacity needed for espresso extraction.

Result

More independent thermal management for real café workflows.

---

04. T3 Heating System

Pre-Heat the Water Before It Reaches the Coffee

KY-T2 S uses a:

T3 Heating System

Brew boiler + pre-heating pipe system

The brewing water passes through the pre-heating system before reaching the brewing system.

This architecture is designed to improve temperature management between the heating source and the coffee puck.

Why does this matter?

Because espresso extraction is highly sensitive to brewing temperature.

The goal isn't simply:

"Make the water hot."

The goal is:

Deliver brewing water under controlled and repeatable thermal conditions.

That's particularly important when the same group is used repeatedly throughout a busy service period.

---

05. Independent Heated Saturated Group

The Group Head Has Its Own Heating Power

KY-T2 S uses an:

Independent Heated Saturated Group

200W

Instead of treating the group head as a passive component, KY-T2 S provides dedicated heating for the group.

This helps maintain the working temperature of the brewing interface during repeated use.

For the barista, that means:

Less concern about the group cooling down during repeated extraction.

The group head, brew boiler and T3 heating architecture work together as part of the overall temperature-management system.

---

06. 3900W Commercial Heating Capacity

Power Where It Matters

KY-T2 S is equipped with:

Why 3900W?

Because commercial performance isn't determined by boiler size alone.

Heating power, boiler separation, group heating and water management all influence how a machine behaves during repeated café operation.

KY-T2 S combines these systems into one compact commercial platform.

---

07. Built for Continuous Café Work

From the First Order to the Morning Rush

A small café doesn't necessarily need three groups.

But it does need a machine that can handle the workflow.

KY-T2 S is designed for:

☕ Espresso

Repeated espresso extraction throughout service.

🥛 Cappuccino

Dedicated steam capacity for milk texturing.

☕ Latte

Espresso extraction and milk steaming within the same workflow.

🥛 Flat White

Controlled extraction followed by milk preparation.

🍵 Hot Water

Hot-water demand is supported by the dedicated steam boiler system.

🔄 Repeated Orders

Designed for unlimited consecutive extraction in real café workflows, with brewing temperature maintained within ±0.3–0.5°C during back-to-back shots.

---

08. Unlimited Consecutive Extractions

No Arbitrary Cup Limit

Unlimited consecutive extractions in real café operation

This is based on normal café workflow, rather than running brew water continuously without interruption.

A barista does not normally run the brew water continuously. Real workflow includes:

Extraction → remove portafilter → prepare next dose → tamp → lock in → extract again

These natural intervals allow the machine's thermal system to continuously maintain its working conditions.

During this repeated workflow, KY-T2 S maintains brewing temperature within:

±0.3–0.5°C

What this means for your business

You don't need to think in terms of an arbitrary daily cup limit.

If your workflow requires:

• Continuous espresso preparation
• Repeated back-to-back orders
• One-barista operation
• Consistent extraction temperature
• Reliable performance throughout service

KY-T2 S is designed to keep working with you.

---

09. Control the Variables That Actually Affect Your Espresso

Adjust the Machine to Your Coffee — Not the Other Way Around

Different coffees require different extraction parameters.

KY-T2 S gives the operator control over key brewing variables.

Adjustable Parameters

Steam Temperature

Adjust steam system temperature according to your milk-steaming requirements.

Extraction Temperature

Adjust brewing temperature to suit different coffee profiles.

Pre-Infusion Time

Adjustable from:

1–9 seconds

Control how long water gently contacts the coffee before full extraction.

Water Flow

Adjust water flow to fine-tune the extraction process.

Coffee Volume

Set the desired coffee output for consistent drink preparation.

---

10. Know What's Happening During Extraction

Pressure Information at a Glance

KY-T2 S includes:

Steam Pressure Gauge

Monitor steam-system pressure during operation.

Real-Time Extraction Pressure Gauge

Monitor extraction pressure directly during brewing.

This gives the barista more information than simply pressing a brew button and guessing what is happening inside the machine.

See. Adjust. Repeat.

The goal is simple:

More control → easier adjustment → more repeatable extraction.

---

11. Professional Components for Commercial Use

Designed Around Proven Coffee-Machine Components

KY-T2 S incorporates:

Italian GICAR Flowmeter

Used for water-flow measurement and volumetric dosing.

FOT Rotary Pump PA204

Provides the water-pressure supply required for commercial espresso operation.

100% Pure Copper Brew Head

The brew head uses pure copper construction.

All-Copper Piping

The internal water piping system uses copper piping.

These components are selected to support the machine's professional commercial configuration.

---

12. Cleaning Shouldn't Become a Second Job

Automatic Backflush Function

Daily café operation creates coffee oils and residue inside the brewing system.

If cleaning is complicated, it often gets delayed.

KY-T2 S includes:

Automatic Backflush Function

Designed to simplify routine group-head cleaning and help integrate cleaning into the daily café workflow.

Simple Principle:

Use → Backflush → Clean → Ready for the next service.

For a commercial machine, easy routine maintenance is not a luxury.

It's part of operational efficiency.

---

13. Compact Commercial Machine

Professional Capability Without Taking Over the Counter

One of the biggest problems with larger commercial espresso machines is not always performance.

It's space.

KY-T2 S is designed for businesses that need commercial espresso capability while working with a more limited counter footprint.

Product Dimensions

550 × 570 × 450 mm

Net Weight

40 kg

Gross Weight

50 kg

Packaging Size

630 × 710 × 500 mm

This makes KY-T2 S particularly practical for compact commercial environments.

---

14. Where Can KY-T2 S Be Used?

Designed for More Than Just Small Cafés

☕ Small & Boutique Cafés

Ideal for businesses with moderate daily coffee demand that don't need simultaneous extraction from multiple groups.

🥐 Bakeries & Dessert Shops

Serve espresso-based drinks alongside pastries and desserts without installing a large commercial machine.

🍽 Restaurants

A practical dedicated coffee station for restaurants where espresso is important but isn't the only beverage service.

🏨 Boutique Hotels

Suitable for breakfast areas, lounge cafés and smaller hotel beverage stations.

🏢 Offices & Corporate Coffee Stations

For professional environments that need a commercial espresso platform rather than a domestic machine.

🚚 Compact Coffee Concepts

A useful option where counter space, electrical capacity and equipment footprint need to be carefully managed.

---

15. Is a Single Group Enough for Your Business?

Choose Based on Workflow — Not Appearance

KY-T2 S is a good fit when:

✔ One barista usually operates the machine
✔ You don't need two espresso extractions simultaneously
✔ Your business has small to moderate coffee volume
✔ You need repeated extraction throughout service
✔ Counter space is limited
✔ You need commercial-grade construction
✔ You want independent steam and brewing systems
✔ You want adjustable extraction parameters

You may need a multi-group machine when:

✘ Multiple baristas must extract simultaneously
✘ Your peak period requires several espresso shots at exactly the same time
✘ Your workflow is heavily dependent on parallel extraction

The key question is not:

"Is one group enough?"

The better question is:

"Do I need multiple groups working at the same time?"

If the answer is no, KY-T2 S may be the more efficient commercial choice.

---

16. KY-T2 S at a Glance

Small Footprint. Independent Heating. Commercial Workflow.

---

17. Complete Accessories Package

Everything You Need to Start Serving

KY-T2 S comes with:

Single Bowl Portafilter

For single-shot preparation.

Double Bowl Portafilter

For double-shot and higher-volume coffee preparation.

Tamper

For immediate espresso preparation.

---

18. Why KY-T2 S?

Because Commercial Doesn't Always Mean Bigger

A larger machine is not automatically a better machine.

If your business doesn't need multiple baristas extracting simultaneously, paying for additional groups can mean:

• More counter space
• Higher equipment cost
• Larger footprint
• More complicated installation
• Capacity you may never use

KY-T2 S takes a different approach.

Keep the single group.

Keep the commercial architecture.

Focus the engineering where one barista actually works.

With separate steam and brew boilers, T3 heating, independent group heating and unlimited consecutive extraction with brewing temperature maintained within ±0.3–0.5°C during back-to-back shots, KY-T2 S is designed to deliver practical commercial performance in a compact format.

FAQ

Q1: Can a single-group espresso machine really handle commercial café operations?

Yes. Single group does not mean low commercial capacity. The group head determines how many shots can be extracted simultaneously, not how many cups the machine can produce throughout the day. KY-T2 S is designed for single-barista commercial workflows and supports unlimited consecutive extractions in real café operation, with brewing temperature maintained within ±0.3–0.5°C during back-to-back shots. It is ideal for businesses that do not require multiple baristas to extract espresso at the same time.

Q2: Will KY-T2 S lose temperature during continuous extraction?

KY-T2 S is designed for stable temperature performance during repeated extraction. It combines a T3 Heating System, 0.8L independent brew boiler, and independently heated saturated group to provide dedicated thermal control for brewing. In actual café operation, the machine can support up to 25 consecutive cups, making it suitable for repeated espresso service during busy periods. Actual performance may vary depending on workflow, power supply, water conditions and operating environment.

Q3: Can I steam milk while preparing espresso?

Yes. KY-T2 S uses two separate boilers: a 6L / 2500W steam boiler and a 0.8L / 1000W brew boiler. The steam boiler is dedicated to steam production, while the brew boiler focuses on espresso extraction. This separation helps prevent milk steaming from directly competing with the brewing system for heating capacity, allowing the barista to prepare espresso and milk-based drinks more efficiently during normal café operation.

Q4: What type of business is KY-T2 S best suited for?

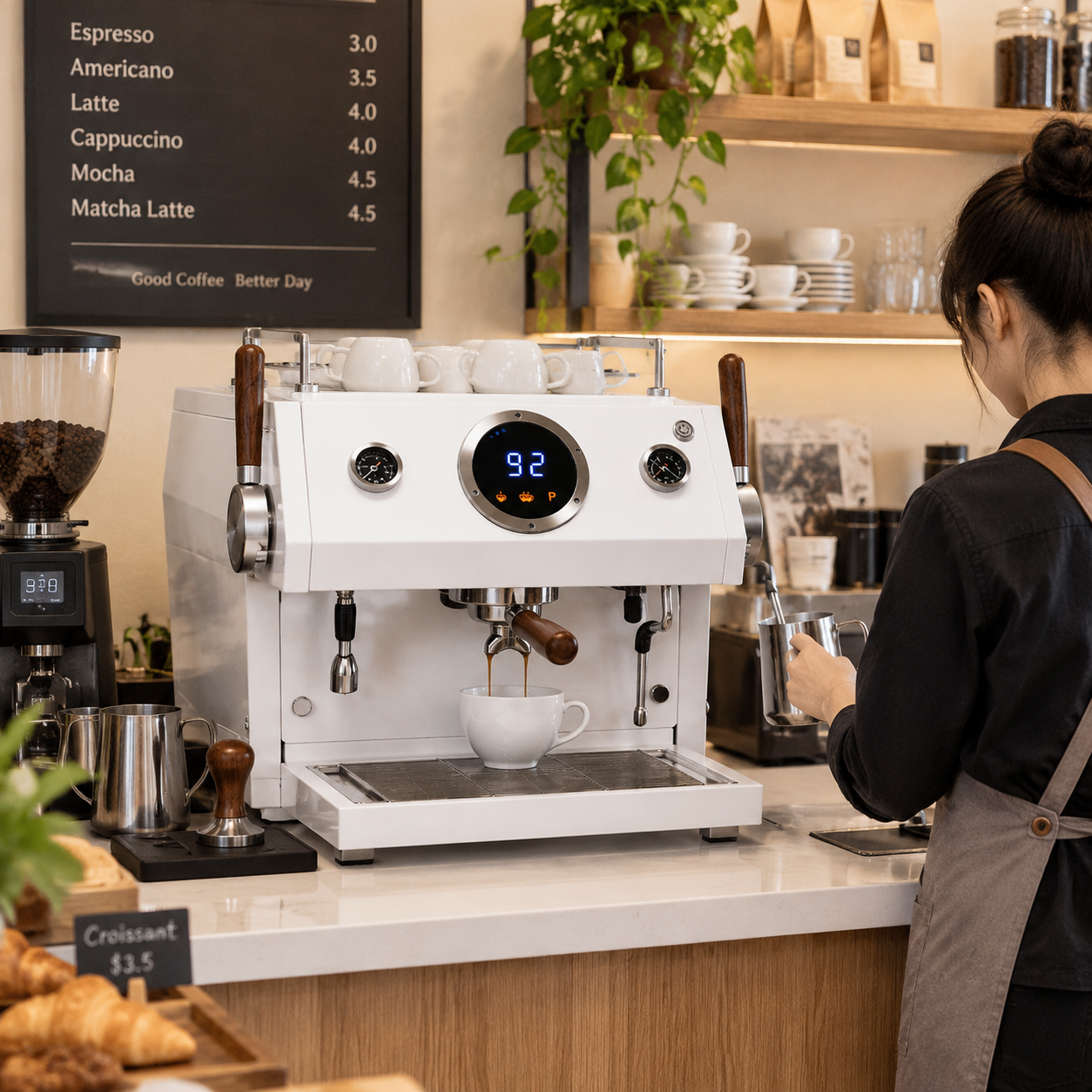

KY-T2 S is designed for businesses that need commercial espresso capability without multiple simultaneous extraction points. It is well suited for small cafés, boutique coffee shops, bakeries, restaurants, hotels and office coffee stations. With its compact 550 × 570 × 450 mm footprint and 40 kg net weight, it works particularly well where counter space is limited. If your operation is mainly handled by one barista and coffee demand is moderate, KY-T2 S provides a practical alternative to a larger two-group machine.
